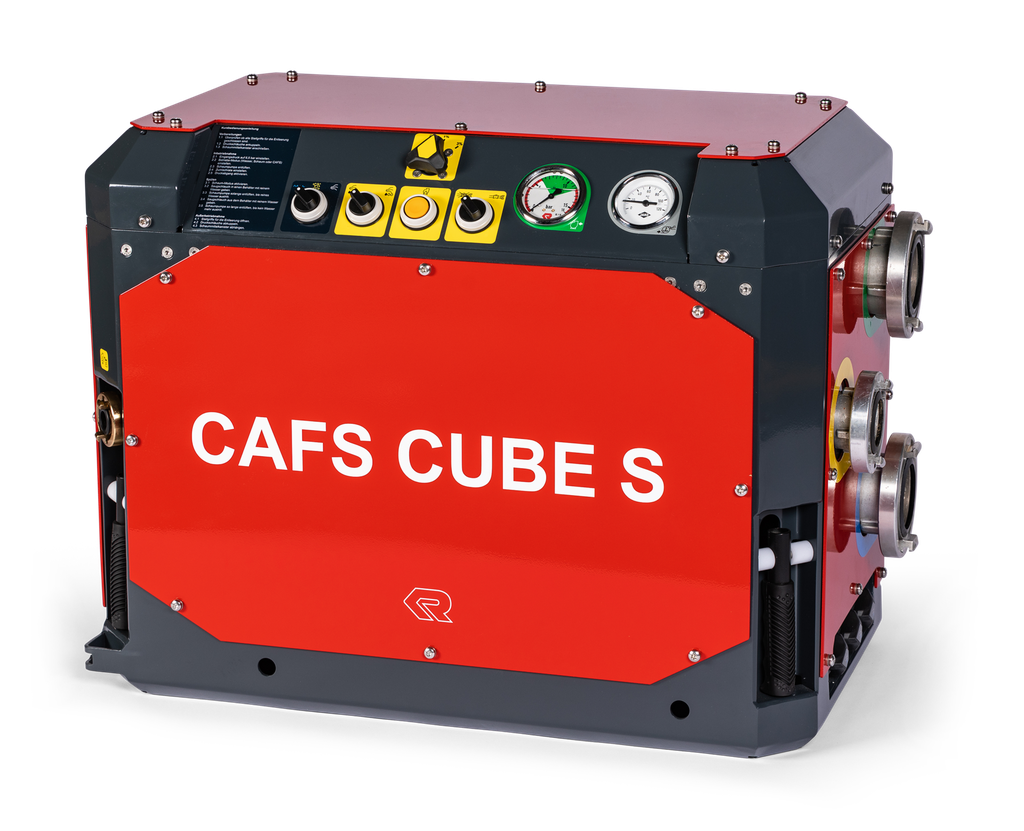

RFC CAFS Cube S

https://shop.rosenbauer.com/web/image/product.template/753/image_1920?unique=4623b0f
Item No.: 49710B-001

30,037.08 € 30,037.08 € EUR 30037.08

VAT included*

25,030.90 €

This combination does not exist.

Quantity:
Add to Cart
Contact Us

Product information

Description

The CAFS Cube S is a portable compressed air foam system with very compact dimensions. In addition to wet and dry compressed air foam (DLS 200/600), wetting agents or water-foam mixtures can also be produced. The system is operated via a water-driven engine, which means that any fire engine with a water pump can be equipped with a compressed air foam system without any modifications.

Intelligent design

The RFC CAFS Cube S is built on an 8 DIN transport frame and can be fixed with standard mounting systems or, depending on the application, transported instead of a power generator. It is equipped with ergonomic carrying handles and can easily be removed from the vehicle and brought into position at the point of use.

Energy-independent drive

The CAFS Cube S can be operated completely manually and requires neither electricity nor fuel to operate. The motor for the pressure proportioning system and the compressor is powered by water that is drawn from the pressure outlet of a fire engine and returned via the water supply. This makes it very reliable, maintenance-friendly and easy to use.

Technical data

Standardbased on NFPA 1906, EN 16327 and ISO 7076-6
Frame8 DIN frame according to DIN 14685-1 (portable power generator)
DimensionsW x D x H = approx. 806 x 434 x 578 mm
Weightapprox. 150 kg
Enginewater-driven engine
Water cycleapprox. 1,600 l/min at 6.5 bar
Foam pumpMembrane pump
Foam compound supplyexternal foam canister
Foam compound connectionStorz D
Suction lift1.5 m
Proportioning ratioWetting agents, 0.5% and 1%Wetting agents, 1% and 3%
Foam compoundFoaming agent with a viscosity up to 80 cSt
CompressorScrew compressor
Air volumeapprox. 600 l/min
Compressor coolingOil/water plate heat exchanger
Connections2 x 2½" supply connection (flow and return)2" pressure outlet
Flow rate (water mode)approx. 200 l/min at 6.5 bar
Flow rate (foam mode)approx. 200 l/min at 6.5 bar
Flow rate (CAFS mode)approx. 50 - 200 l/min at 6.5 bar
CAFS foam quantityapprox. 800 l/min
Expansion ratioapprox. 4 (wet foam) - 11 (dry foam)
