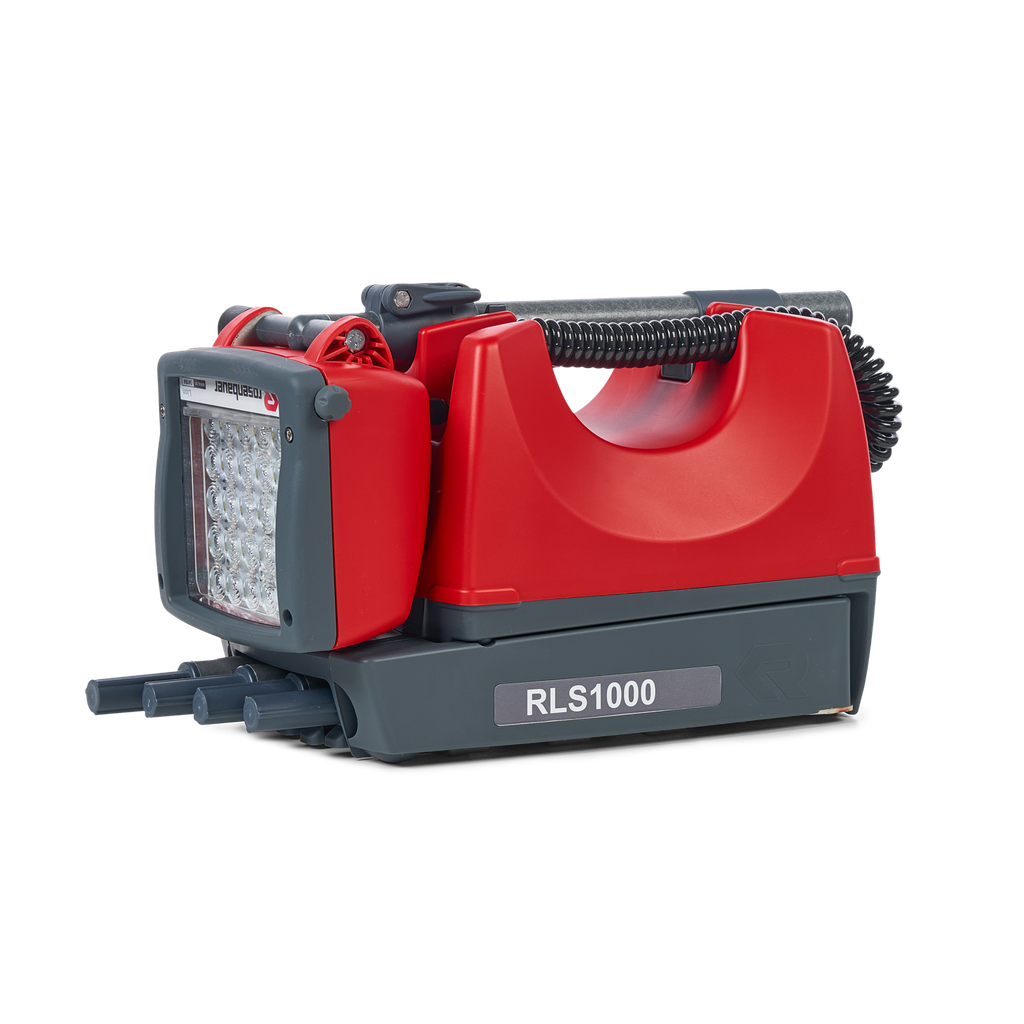

RLS1000 – the smart LED lighting system

The LED portable worklight RLS1000 is used wherever supplying the right light is difficult. With only 12.00 kg, it ensures a lighting duration of 8 hours at 100 % luminous flux (10 min at 150 % "power boost" luminous flux), entirely without an external energy supply. The Quick Lock (quick-release) extension poles built into the device allow the spotlight to be set up at different heights up to a maximum of 2 m. More details:

• Turnable light head allows movement in all directions
• High performance LEDs with specially designed lens system and 16 multicolor LEDs
• 2 operating modes:
  Work light: with spot beam or flood light stepless adjustable
  Flash light in 5 colours: changeable in white, red, green, amber and blue for different use, such as for road accidents, sign for operation chief, SCBA collecting place...
• Comes with charger 12/24 V 2 m with plug for cigarette lighter
• Intelligent monitoring system prevents over- and discharge and protects own and vehicle battery
• 2 integral tripod stabiliser legs give a sturdy stable base for mast at full extension

Technical data:

• Color temperature: 6.500 K (similar daylight)
• 6 levels brightness settings from von 8 % to 150 %

  Brightness level	8 %	25 %	50 %	75 %	100 %	BoostMode*
  Lumen Output	390	1200	2400	3600	4800	6600
  Operation time	110 h	33 h	16 h	11 h	8 h	*

• *Powerboost for 10 min at 150 % light power
• Lamp type: 30 x High Power / Flux SMD LED’s, Power consumption 33 W
• Battery: 12 V 22 Ah SLA Gel
• Protection class: IP54
• Dimensions: 430 x 215 x 255 mm
• Weight: 12.00 kg
