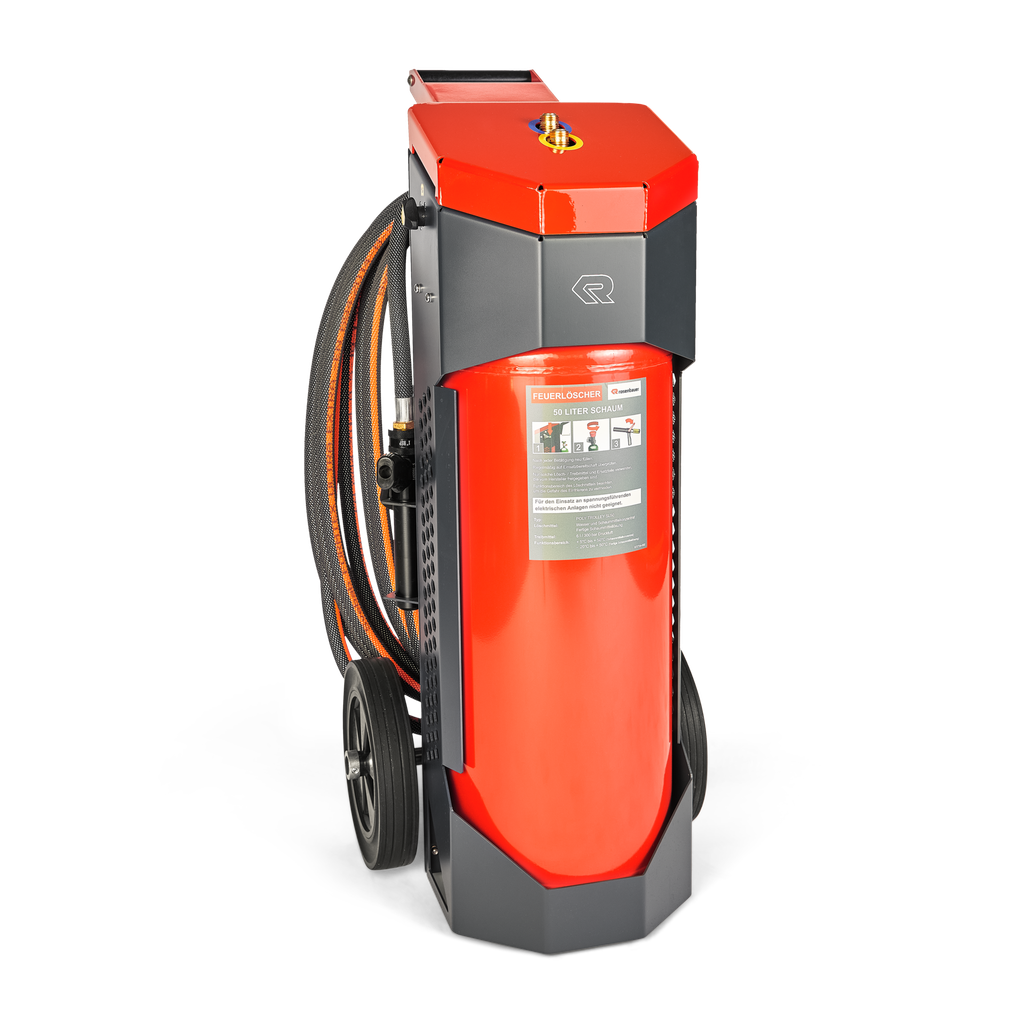

RFC POLY Trolley

Description

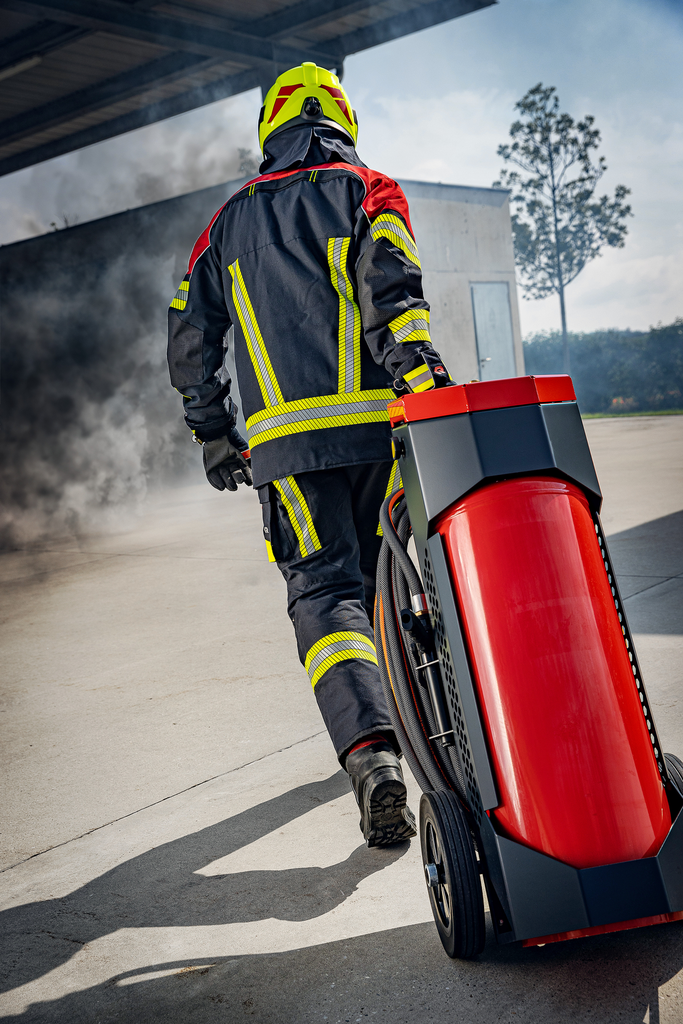

The RFC POLY Trolley can be mounted in fire trucks as well as used in stationary fire protection. The mobile CAFS fire extinguisher is equipped with two sturdy, large wheels and can be easily transported over long distances. An ergonomic handle provides excellent grip. With an extinguishing agent quantity of 55 litres of water, the RFC POLY Trolley can be used to carry out an approximately one and a half minute uninterrupted extinguishing attack.

Easy handling, instantly ready for operation

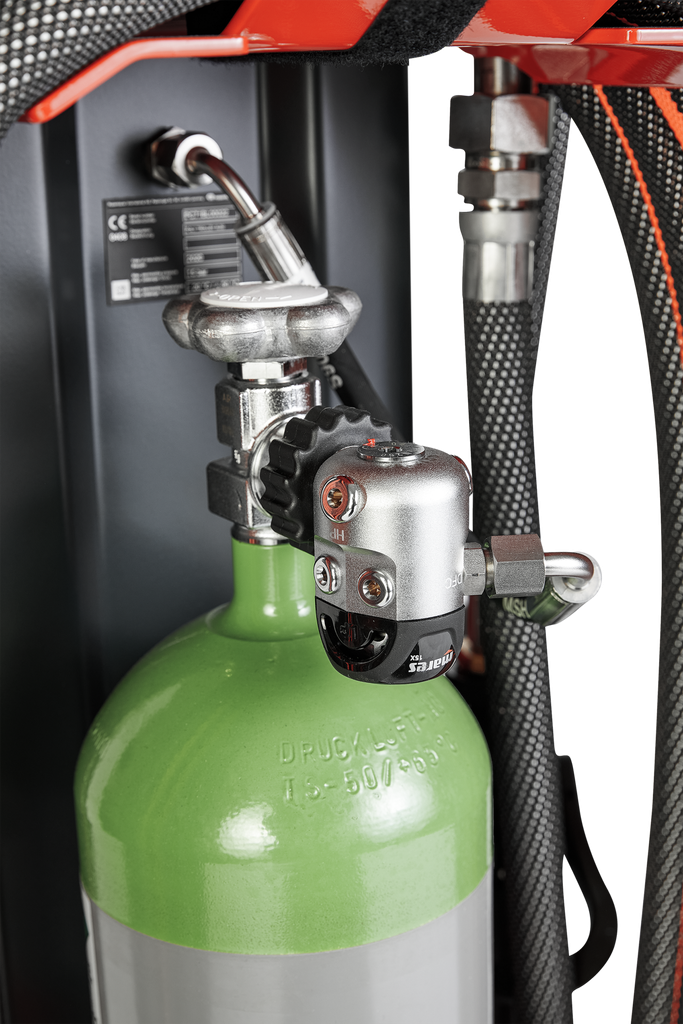

The RFC POLY Trolley is ready for operation in two easy steps. By opening the compressed air bottle valve, water is mixed with the foam compound, which is in a separate cartridge and thus retains its quality for a long time, to become a premix solution. By actuating the nozzle, the water/foam compound mixture in the mixing chamber is actively foamed into compressed air foam, and extinguishing work can begin immediately.

Different foam qualities

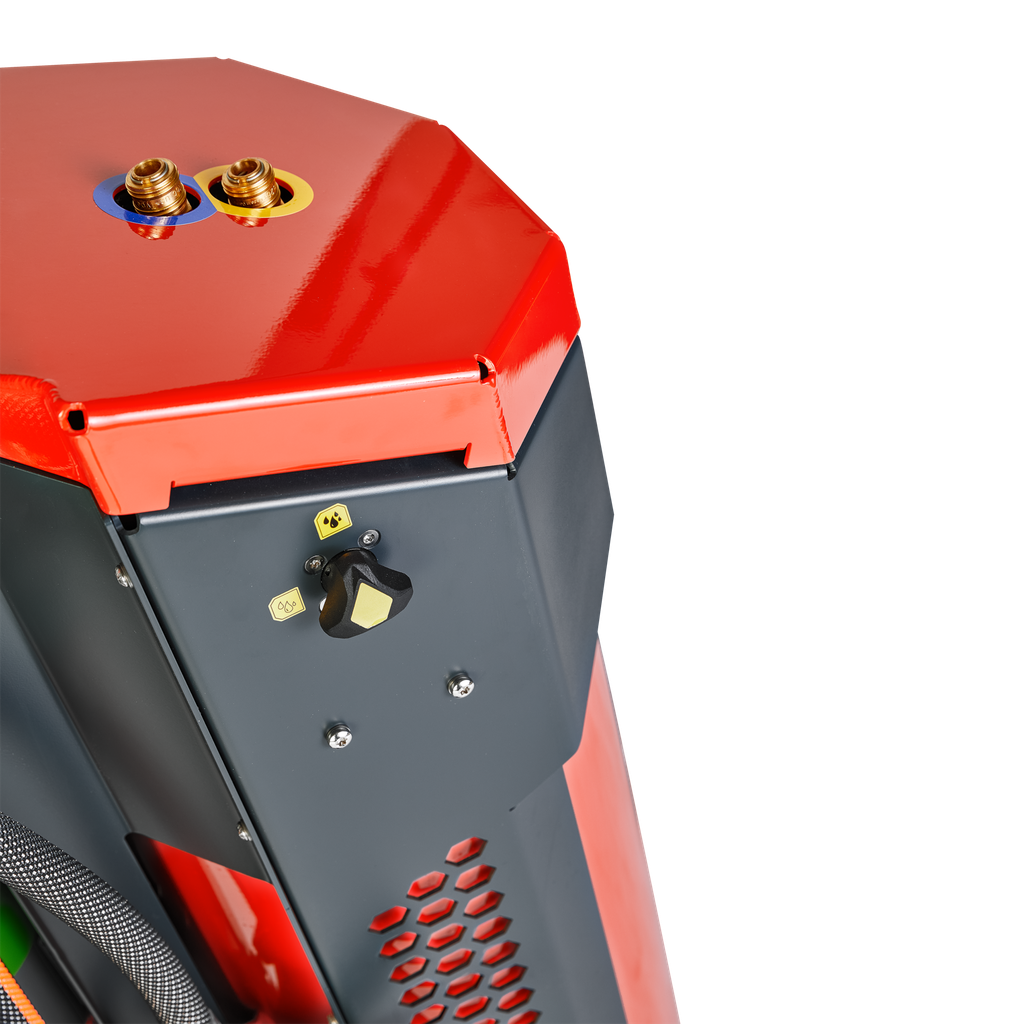

All Class A and Class B foam compounds as well as fluorine-free foam concentrates with different viscosities and concentrations (0.5%, 1.0%, 3.0%) can be used with the RFC POLY Trolley. In addition, different foam qualities can be produced, and it is possible to switch from wet to dry foam and back during extinguishing operations. The changeover is performed by simply actuating a rotary knob, which can even be operated when wearing gloves.

Firefighting with compressed air foam

The RFC POLY Trolley works with CAFS (Compressed Air Foam System) technology. He produces highquality compressed air foam which has a very homogeneous structure as well as a high energy content. With compressed air foam, fast and effective extinguishing success can be achieved - especially when fighting small and incipient fires of fire classes A and B.

Large operating range

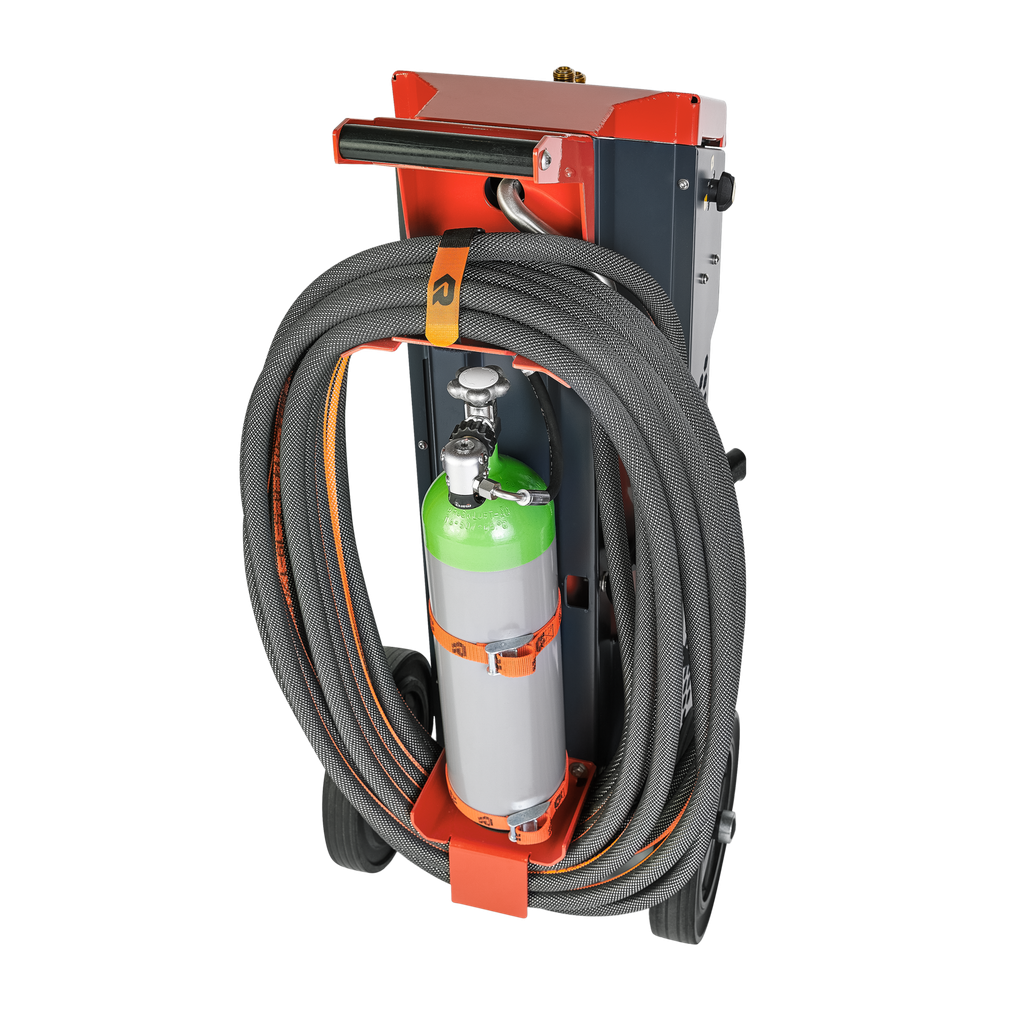

The RFC POLY Trolley is equipped with a 20 metre long special textile hose. The high quality and dimensionally stable hose increases the radius of action during fire fighting and enables fire-fighting operations from different positions without having to move the trolley.

Rapid refilling

After an operation, the pressure relief device is actuated via a specially installed overflow line, and the two tanks are refilled via easily accessible quick connect couplings. Filling can be undertaken simply by means of a garden hose, which is connected to the quick-release coupling using an adapter. The foam compound is measured in a separate measuring cup and filled in via a connectable funnel; the pressure cylinder is simply replaced.
