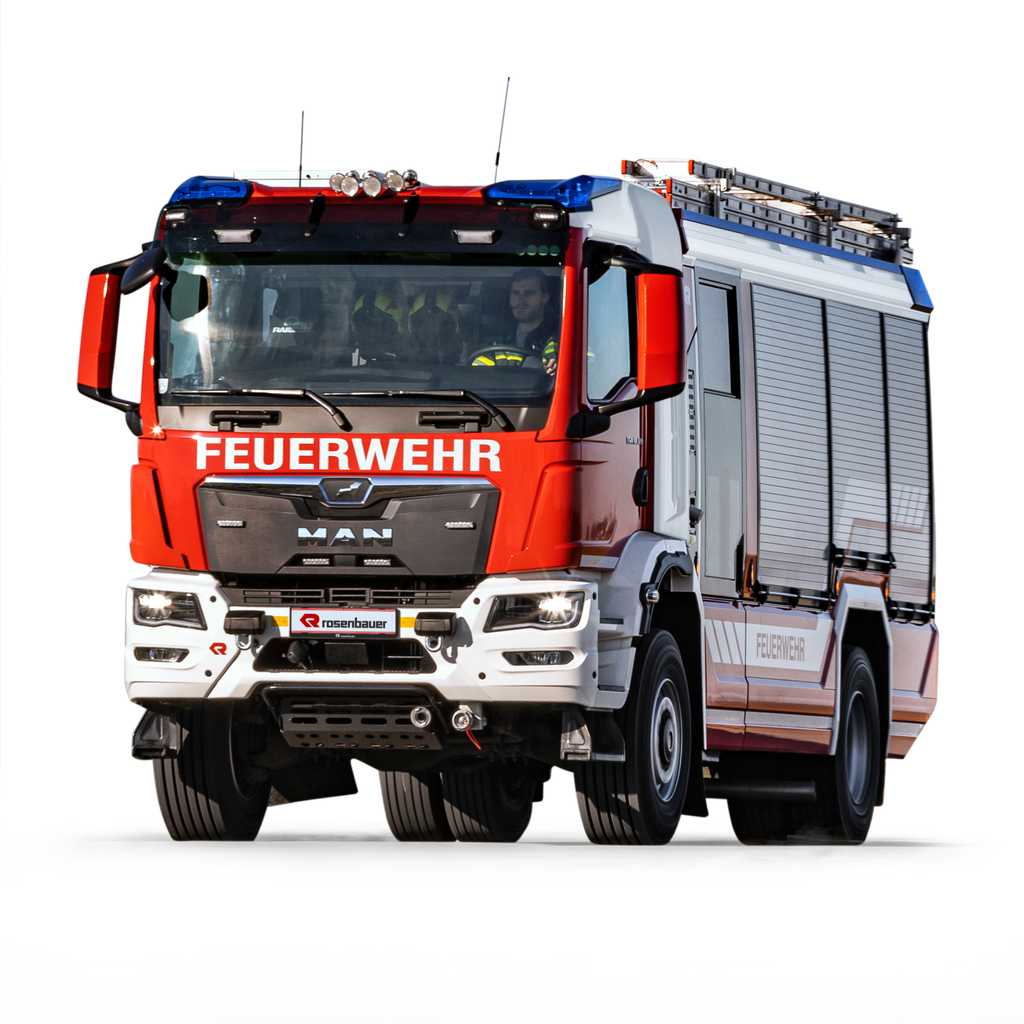

RLFA 2400 MAN TGM 4x4

Product Information

Rosenbauer Rescue Firefighting Vehicle 2000 with All-Wheel Drive (RLFA 2000)

Advanced Technology represents the most innovative and advanced firefighting and rescue vehicle designs in the world. AT means always being at the cutting edge while remaining familiar. The AT integrates all functions and components that make up a superior firefighting vehicle.

Chassis

• Type: MAN TG3 18.320 4x4 BB
• Engine Power: 235 kW (320 hp)
• Transmission: ZF 12 AS 1210 OD TipMatic
• Wheelbase: 4,200 mm
• Color: Fire Red RAL3000

Carin

• Rosenbauer crew compartment integrated into the body
• Crew capacity: 1/8 (2+3+4)
• 2x SCBA holders facing rearward
• Glass/glass crew compartment doors
• Folding steps under crew compartment doors

Body Design

• Rosenbauer aluminum body with a self-supporting, bolted, and bonded aluminum sheet and profile construction
• Aluminum sandwich panels with robust plastic coverings
• Deep compartment shutters

Control System

• Rosenbauer LCS 3.0 (Logic Control System), based on CAN-Bus technology
• Control and monitoring of chassis, body, extinguishing system, and warning devices
• Intuitive operation via a Rosenbauer 10" display in the driver’s cab
• Standardized pump control panel in the rear, following the recommendations of the German Firefighters Association (DFV)

Firefighting Technology

• Pump: NH35 according to EN1028 FPN10-3000
• Pump pressure regulator
• Free tank inlet (1 line) with dampened supply flap
• Water tank capacity: 2,400 liters with automatic level regulation
• Foam concentrate tank
• Rosenbauer FIXMIX 2.0 foam proportioning system
• Discharge outlets:
• 4x low-pressure outlets with screw-down valves

Warning Systems

• Rosenbauer cab roof extension with integrated LED flashers (High-End)
• Flashing blue LED strip integrated along the entire body length in the roof gallery
• LED flashers in the rear, integrated into the roof gallery (High-End)
• 2 LED flashers on the front grille
• Compressed air horn with 4 sound bowls (FIAMM)
• "Rosenbauer" traffic guidance system in the rear

Lighting

• Close and long-range illumination using high-performance LED strips along the entire body length in the roof gallery
• Fireco light mast with 8x 4000-lumen LED spotlights (4x close-range, 4x long-range)
• LED compartment lighting

Mounting & Body Components

• Mounting system for standard equipment according to BRL, RLF 2000
• Hygiene wall COMFORT with air gun
• Mounts for extension and sliding ladders on the roof
• Wheel chock mount in the body near the winch
• COMFORT electric and manual ladder lowering system
• Mounting device for one-person hose reels

Additional Equipment

• Generator interface in GR 1/2 for FIRE-CAN
• Shutter rear-view camera with display on the front screen
• Wheel arch steps in the rear axle area

Dimensions & Weight

• Gross vehicle weight: 18,000 kg
