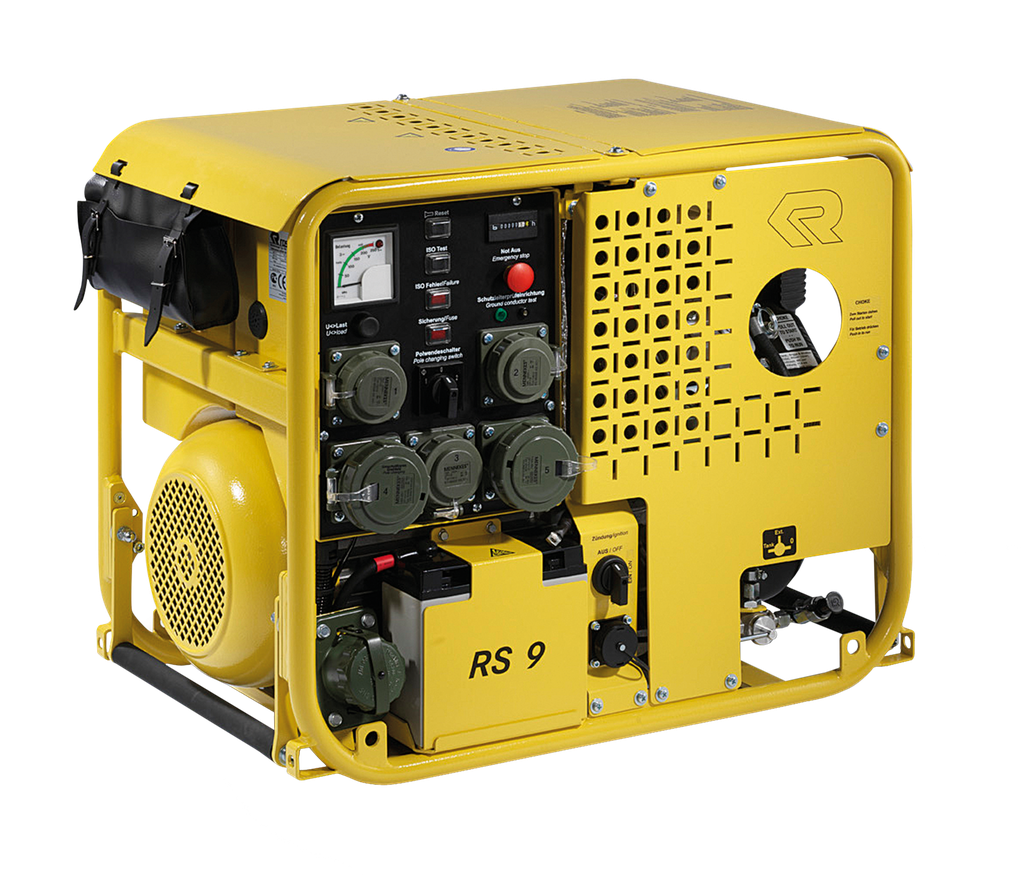

Generator RS 9

https://shop.rosenbauer.com/web/image/product.template/1250/image_1920?unique=4623b0f
Item No.: A05500-040

8,894.40 € 8,894.40 € EUR 8894.4

VAT included*

7,412.00 €

This combination does not exist.

Quantity:
Add to Cart
Contact Us

Product information

Power generator RS 9 - 9kVA combined with small dimensions (DIN 5)

Specially designed for fire fighting operations. The RS 9 combines maximum power with small dimensions. Experience shows that the most important features are a long operating time and simple handling of all operating components. Optimal usability for medical equipment and computers at the operating center is also important. Special protective devices and sturdy construction guarantee a long life time.

SPECIAL, USER-FRIENDLY FEATURES:

  • Electric starter - Starts without a key - simply press a rotary switch
  • Front control panel - All operating elements at the front side, ideal for fixed installation
  • Emergency stop button - current off when pushing the button for your safety
  • Constant voltage - Only +/- 1 % at 400 V and 230 V
  • Sound-reduced exhaust
  • Sound-insulation
  • Intuitive control panel - all in overview

TECHNICAL DATA:

Generator:

Type:Synchronous generator with electronical controller
Output:9 kVA at 400 V, 7000 W
Voltage:3 x 230 V /2 x 400 V
Voltage stability:+-1%
Frequency:50 Hz
Power factor:0,8
Rated current at 400 V: 11,6 A


Engine:

Manufacturer:Briggs & Stratton Corporation USA
Model:16 PS Vanguard
Type:2-cylinder OHV 4 cycle, gasoline engine
Ignition:electronical
Fuel:min. unleaded gasoline ROZ 91
Exhaust:The engine fulfils the US-Standard CARB 94
Fuel consumption:approx. 4.2 l/h under full load power
Equipment:Recoilstarter, 12 V electric starter complete with battery


Switchbox:

  • 2 waterproof three-phase CEE 16A sockets
  • 3 waterproof sockets with protective plug reception
  • 1 alternating-current automatic cut-out 16A-3 poles with neutral wire
  • 3 alternating-current automatic cut-out 16A-1 pole with neutral wire
  • 1 control panel for indication of fuel level, load, voltage, operation hours and error messages
  • 1 testing tin
  • 1 emergency stop button
  • 1 start-/stop rotary switch

Accessories:

  • 1 tool bag containing: 1 sparking plug wrench, 1 testing cord with probe, 1 sparking plug
  • 1 Instruction manual: with wiring diagram, spare parts list and CE manufacturer's declaration
